Transformers w. U-Shaped Panel Fixing 1-100VA 50/60Hz

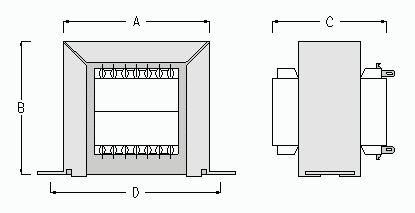

Transformers with U-Shaped Panel Fixing 1-100VA - Dimensions




ITEM POWER (VA) A (mm) B (mm) C (mm) D (mm)
220 1.0 35 28 27 41
221 1.5 35 28 35 41
230 2.5 42 36 29 48
231 3.5 42 36 31 48
241 6.0 50 42 36 60
242 8.0 50 42 41 60
243 10.0 50 42 46 60
250 12.0 62 52 43 70
251 17.0 62 52 48 70
252 22.0 62 52 52 70
253 27.0 62 52 57 70
260 18.0 70 61 50 82
261 25.0 70 61 52 82
262 30.0 70 61 57 82
264 40.0 70 61 67 82
270 30.0 78 65 56 90
271 40.0 78 65 60 90
272 50.0 78 65 64 90
273 60.0 78 65 69 90
280 50.0 87 77 65 100
281 65.0 87 77 70 100
282 80.0 87 77 75 100
290 100.0 99 83 80 112



Variants available on request
