AEP600 -Lucent Chipsets


Features

  • complies with ANSI and ETSI requirements
  • matched to Lucent´s Wildwire chipsets
  • very low THD
  • 1,500V minimum isolation
  • all materials approved to UL94V-0
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001 approved facility
   AEP600 - Lucent Chipsets


Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number		 Package IC Driver Turns
Ratio
±2%
Line : IC		 LP
±6%		 LL
(µH)
Max.		 CWW
(pF)
Max.		 DCR
(Ohms)
Max.
Line / IC		 THD
(Linearity)
Typical		 Longitudinal
Balance
Min.		 Insertion
Loss
Max.		 Frequency
Response
Max.		 Isolation
Voltage
(Vrms)
 AEP600-T TH  Wildwire CPE 1 : 1 1,23mH 10 40 1,40 / 1,60 -80dB
100kHz		 -50dB
30kHz-1,1MHz		 0,5dB
300kHz		 0,5dB
30kHz-1,1MHz		 1.500
 AEP610-T TH  Wildwire CO 1 : 1 490µH 10 40 1,35 / 1,50

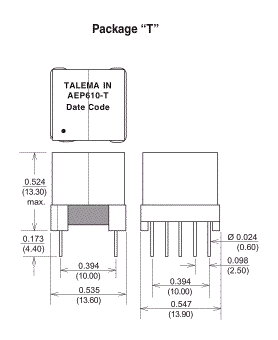

Dimensions   Schematic - Pins
