AEP500 -Globespan Chipsets


Features

  • complies with ANSI and ETSI requirements
  • matched to Globespan's DMT G7000, EL-1501, G7266 and G7266RT chipsets
  • very low THD
  • 1,500V minimum isolation
  • all materials approved to UL94V-0
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001 approved facility
   AEP500 - Globespan Chipsets


Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number		 Package IC Driver Turns
Ratio
±2%
Linie : IC		 LP
(µH)		 LL
(µH)
Max.		 CWW
(pF)
Max.		 DCR
(Ohm)
Max.
Linie / IC		 THD
(Linearity)
Typical		 Longitudinal
Balance
Min.		 insertion
Loss
Max.		 Frequency-
Response
Max.		 Isolation
Voltage
(Vrms)
 AEP500-S SMD  G7000 CPE 2 : 1 435
±6%		 10 40 1,30 / 1,50 -80dB
100kHz		 -40dB
20kHz-1,1MHz		 0,5dB
722kHz		 0,5dB
30kHz-1,1MHz		 1.500
 AEP510-T TH  G7000 CO 1,4 : 1 441
±6%		 6 40 1,05 / 0,85 -70dB
200kHz		 -60dB
20kHz-1,1MHz		 0,5dB
722kHz		 1,0dB
150kHz-1,5MHz
 AEP510-S SMD
 AEP520-T TH  EL-1501 CPE 1 : 1 407
±6%		 10 40 1,40 / 1,20 -85dB
100kHz		 -50dB
30kHz-1,1MHz		 0,5dB
722kHz		 3,0dB
30kHz-2,0MHz
 AEP520-S SMD
 AEP530-T TH  EL-1501 CPE 1 : 1 407
±6%		 10 40 1,40 / 1,20 -85dB
100kHz		 -50dB
30kHz-1,1MHz		 0,5dB
722kHz		 3,0dB
30kHz-2,0MHz
 AEP530-S SMD
 AEP540-T TH  EL-1501 CO 1 : 1,4 483
±10%		 10 50 1,30 / 2,45 -85dB
100kHz		 -50dB
30kHz-1,1MHz		 0,5dB
722kHz		 3,0dB
30kHz-2,0MHz
 AEP540-S SMD
 AEP550-T TH  G7266 CO 1,41 : 1 474
±10%		 12 40 1,10 / 0,85 -80dB
100kHz		 -50dB
30kHz-1,1MHz		 1,0dB
722kHz		 0,5dB
100kHz-1,1MHz
 AEP550-S SMD
 AEP560-S SMD  G7266RT 2 : 1 440
±5%		 6 40 1,90 / 0,95 -80dB
100kHz		 -50dB
30kHz-1,1MHz		 1,0dB
722kHz		 0,5dB
100kHz-1,1MHz

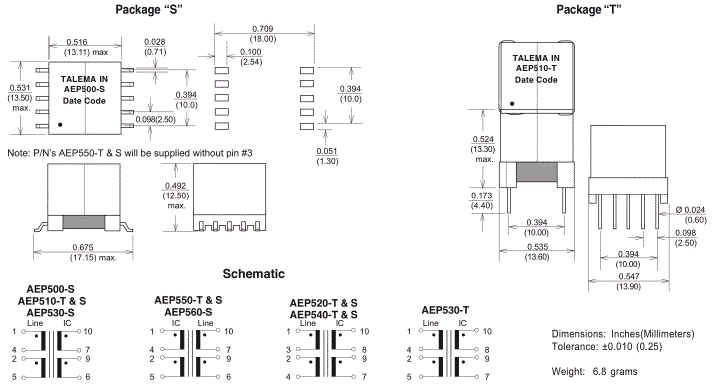

Dimensions & Pins
